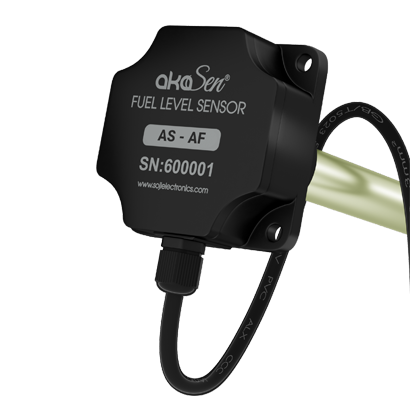

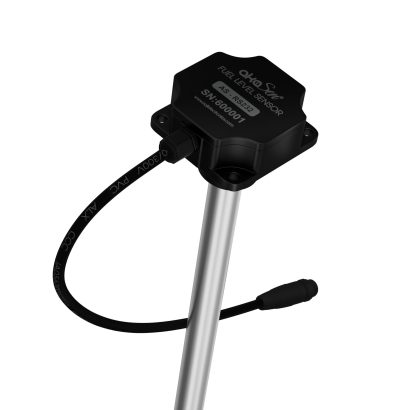

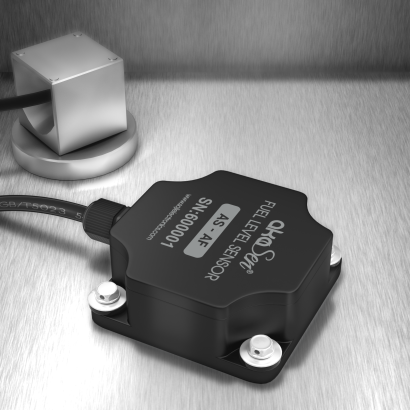

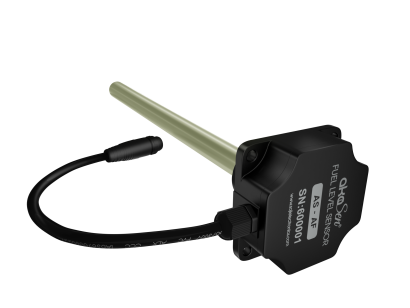

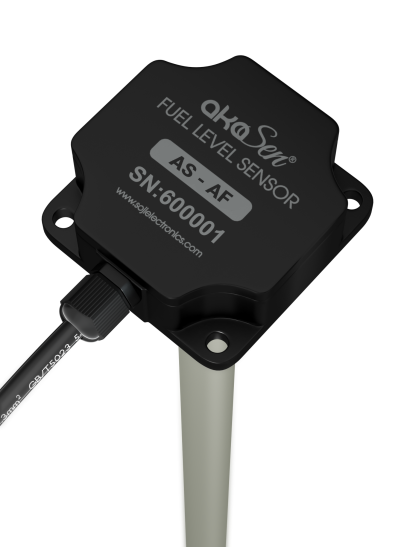

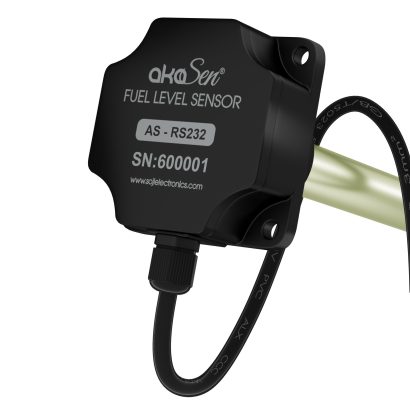

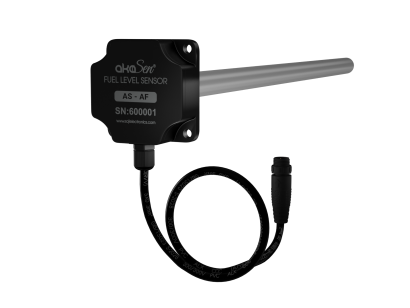

The LIGO PRO fuel level sensor represents a significant advancement as a third-generation product, having undergone extensive mechanical refinements to enhance both performance and durability. These improvements enable the sensor to better cope with issues such as water resistance and electrical insulation, especially compared to its predecessors. Notably, this product adheres to the highest standards of water and chemical resistance, including its ability to withstand water ingress according to the IP69K standard.

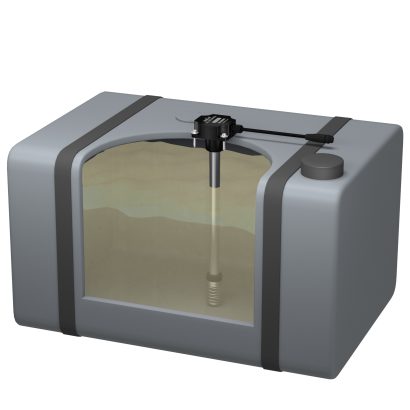

Another key feature is the sensor’s base, constructed from synthetic plastic, which has been cleverly designed to flex and conform seamlessly to the curved surfaces of fuel tanks without the need for multiple rubber gaskets to prevent oil spillage.
Furthermore, the product is manufactured with high-quality materials, ensuring reliability in extreme temperature environments. It effectively withstands the impacts of chemicals, gasoline, and UV radiation without succumbing to any form of degradation or corrosion. This makes the sensor an ideal choice for applications in harsh temperature conditions and those requiring exceptional durability.
Extra advantages
- High accuracy up to 99.5%.
- Operating input voltage range from 7V-50V
- Internal isolation voltage up to 2500V.
- Possibility of cutting down or extending up to 6000mm (optional)
- Wide operating temperature range from -40°C to +85°C.
- A filter protecting the probe from dregs and water.
- Ingress protection rating IP69K
- Noise filter and temperature compensation system.
- Installation and configuration software on multiple application devices: phone, laptop, etc.
- Anti-vibration spring when moving.
- Quick installation, safety guaranty.
Setting up from the smartphone.
Your employees don’t need to carry laptops anymore, as the configuration can now be done simply by using the user-friendly mobile application installed on your phone.
Compatible with popular trackers
“LIGO PRO – Series ” fuel level sensor is compatible via with popular GLONASS/GPS trackers of such brands as Teltonika,Xirgo Global,Suntech,Queclink,Coban,Concox…
PARAMETER
|
AF
|
Size, mm
|
700, 1000, 1500, up to … 6000
|
Error in measurement, %
|
± 0.5
|
Output
|
Analog / Frequency
|
Programmable baud rate, bit/s
|
9600
|
Dielectric strength of galvanic isolation, min (V)
|
2500
|
Power supply voltage, V
|
7…50
|
Current consumption, max, mA
|
20
|
Power consumption, max, W
|
0.4
|
Ingress protection rating
|
IP69K
|
OPERATING CONDITIONS:
|
OPERATING CONDITIONS:
|
Operating temperature,°С
|
-40 … +85
|
Relative humidity at 25 °С, %
|
5 … 95
|
Air pressure, kPa
|
84 … 107
|
Maximum allowed humidity level, %
|
100
|
Resolution, bit
|
12
|
Output range of readings corresponding to the maximum value of value of measured level
|
1…9V/200…2000Hz.Output range of readings corresponding to the maximum value of measured level
|
Output range of readings corresponding to the minimum value of value of measured level
|
0…8V/100…1500Hz.Output range of readings corresponding to the maximum value of measured level
|
Temperature measuring range,°С
|
– 40 … + 85
|
Measurement frequency, s
|
1
|
Message interval, s
|
1
|
Interval of automatic data output, s
|
1…255
|
Operation mode
|
Continuous
|
Working principle
|
Capacitive Sensor
|
Average service life, years |
10 |
MANUAL & DOCUMENTATION
DRIVER & SOFWARE

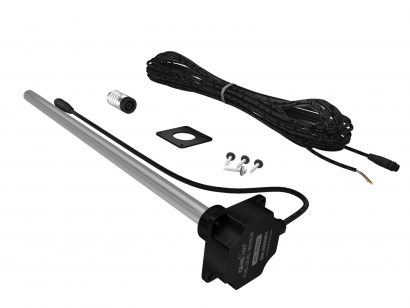

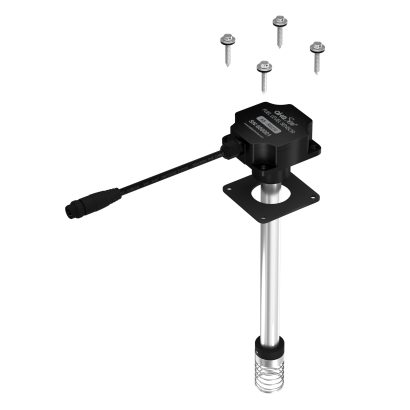

STANDARD PACKAGE CONTAINS
LIGO PRO – AFL7; LIGO PRO – AFL10
▪️ 02 pcs fuel level sensor LIGO PRO – AFL7
▪️ 02 pcs 7M capble
▪️ 02 accessory bag (Each bag includes: 01pcs Gasoline resistant rubber gasket; 01 pcs Oil filter; 01 pcs Anti-vibration spring; 01 pcs Fuse 2A; 02 pcs Sealing cord; 04 pcs Rivet and screw M5x20mm; 04 pcs Self-drilling screw M4.8x32mm) .
▪️ Packaging box with LIGO branding
▪️ Box size for 2 products (cm): 79 x 18 x13
▪️ Weight (kg): 3.2 |
▪️ Box size for 10 products (cm): 80 x 38 x 33
▪️ Weight (kg): 16.20
|
MORE OPTIONS
▪️ 01 pcs fuel level sensor LIGO PRO – AFL15
▪️ One or more connected measuring tubes
▪️ 01 pcs 7M capble or Options
▪️ 01 accessory bag (Each bag includes: 01pcs Gasoline resistant rubber gasket; 01 pcs Oil filter; 01 pcs Anti-vibration spring; 01 pcs Fuse 2A; 02 pcs Sealing cord; 04 pcs Rivet and screw M5x20mm; 04 pcs Self-drilling screw M4.8x32mm) .
▪️ Packaging box with LIGO branding
