Reliable fuel monitoring is easy, durable

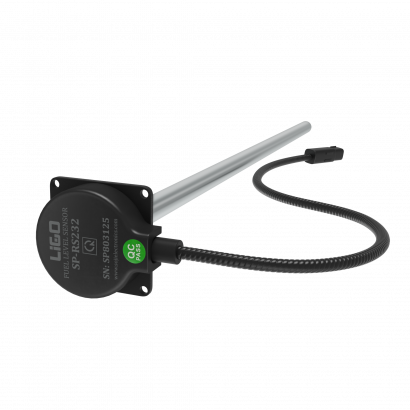

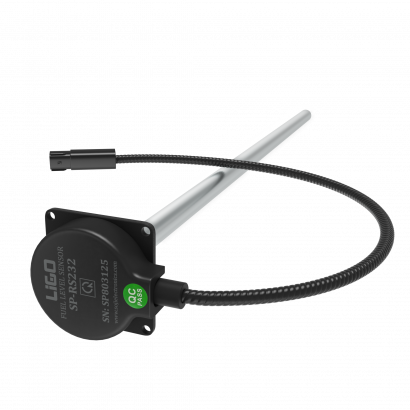

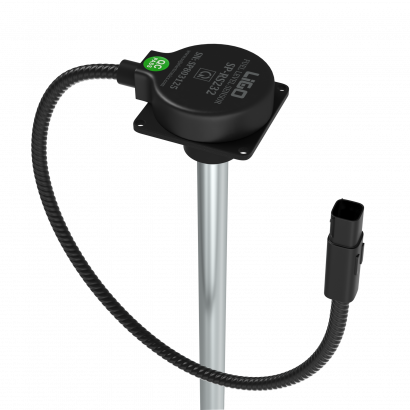

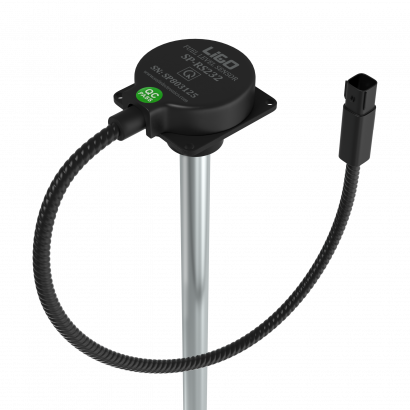

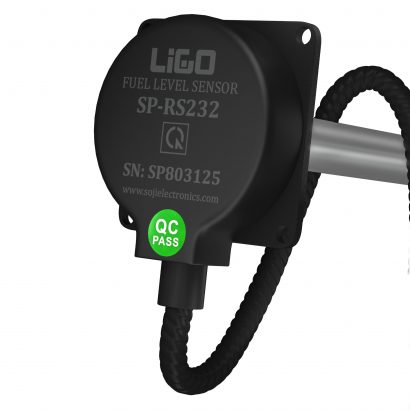

LIGO SP-RS232 is a sensor line using capacitive technology with high accuracy up to 99.5%. The sensor with RS232 interface mode head can connect to many GPS devices through the built-in LLS protocol available on the sensor. In addition, the sensor material is made of aluminum alloy and glass fiber plastic to make the sensor durable over time, unaffected by the environment, it is also equipped with an isolated source of protection against explosions up to 2500V.
LIGO SP-RS232 is a high precision capacitive fuel level sensors, designed to monitor the fuel consumption, loadings, offloadings and thefts on all types of vehicles, including agricultural, construction, mining and other machinery as well as stationary deposits, tanks, generators, etc…
Extra advantages
Electrical (galvanic) isolation
Connection status monitoring output

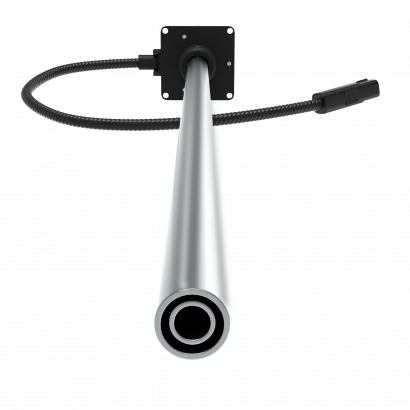

The length of the measuring tubes of the sensor can vary from 0.12m to 6m.
Operational temperature range -40/+85 °С;
Advanced thermal compensation algorithm
Water and dust protection (IP67)
Highly damage-resistant polyamide body
Setting up from the smartphone.
Your employees don’t need to carry laptops anymore, as the configuration can now be done simply by using the user-friendly mobile application installed on your phone.
Compatible with popular trackers
“LIGO SP-RS485” fuel level sensor is compatible via with popular GLONASS/GPS trackers of such brands as Teltonika,Xirgo Global,Suntech,Queclink,Coban,Concox…
 |
 |
 |
 |
 |
MANUAL & DOCUMENTATION
 |
LIGO SP – RS232 Datasheet [EN]
Update 10.01.2022 |
|
LIGO SP – RS232 User Guide [EN]
Update 10.01.2022 |
|
LIGO SP – RS232 Brochure [EN]
Update 10.01.2022 |
PROTOCOL
|
LIGO SP – RS232 Protocol LLS [EN]
Update 10.01.2022 |
DRIVER & SOFWARE
 |
LIGO SP – RS232 Sofware [EN]
Update 10.01.2022 |
STANDARD PACKAGE CONTAINS
LIGO SP-RS232L7; LIGO SP-RS232L10
▪️ 02 pcs fuel level sensor LIGO SP-RS232L7 or LIGO SP-RS232L10
▪️ 02 pcs 7M capble

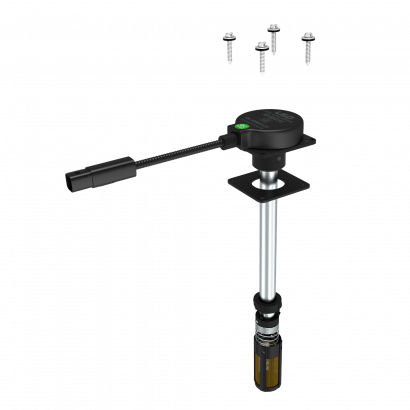

▪️ 02 accessory bag (Each bag includes: 01pcs Gasoline resistant rubber gasket; 01 pcs Oil filter; 01 pcs Anti-vibration spring; 01 pcs Fuse 2A; 02 pcs Sealing cord; 04 pcs Rivet and screw M5x20mm; 04 pcs Self-drilling screw M4.8x32mm) .
▪️ Packaging box with LIGO branding
▪️ Box size for 2 products (cm): 79 x 18 x13 ▪️ Weight (kg): 3.2 |
▪️ Box size for 10 products (cm): 80 x 38 x 33 ▪️ Weight (kg): 16.20 |
MORE OPTIONS
▪️ 01 pcs fuel level sensor LIGO SP-RS232L15
▪️ One or more connected measuring tubes
▪️ 01 pcs 7M capble or Options
▪️ 01 accessory bag (Each bag includes: 01pcs Gasoline resistant rubber gasket; 01 pcs Oil filter; 01 pcs Anti-vibration spring; 01 pcs Fuse 2A; 02 pcs Sealing cord; 04 pcs Rivet and screw M5x20mm; 04 pcs Self-drilling screw M4.8x32mm) .
▪️ Packaging box with LIGO branding
Analog (1 … 10V) , Frequency (500 – 2000HZ)
Diesel/Fuels/Vegetable Oil …
-40… +85°С
Gailvanic isolation: 2500V
Analog (0 … 9V) , Frequency (500 – 2000HZ)
Diesel/Fuels/Gasoline…
-40°С to +85°С
Gailvanic isolation: 2500V
Power supply: 7…50V
RS232 interface
Diesel/Fuels/Gasoline…
-40°С to +85°С
Gailvanic isolation: 2500V
Power supply: 7…50V
RS485 interface
Diesel/Fuels/Gasoline…
-40°С to +85°С
Gailvanic isolation: 2500V
Power supply: 7…50V
